Dust removal system

We have tested the following extraction systems for our milling machines. The extractors are compatible with either the Mafell FM1000 or the 300W milling spindle.

Chip extraction

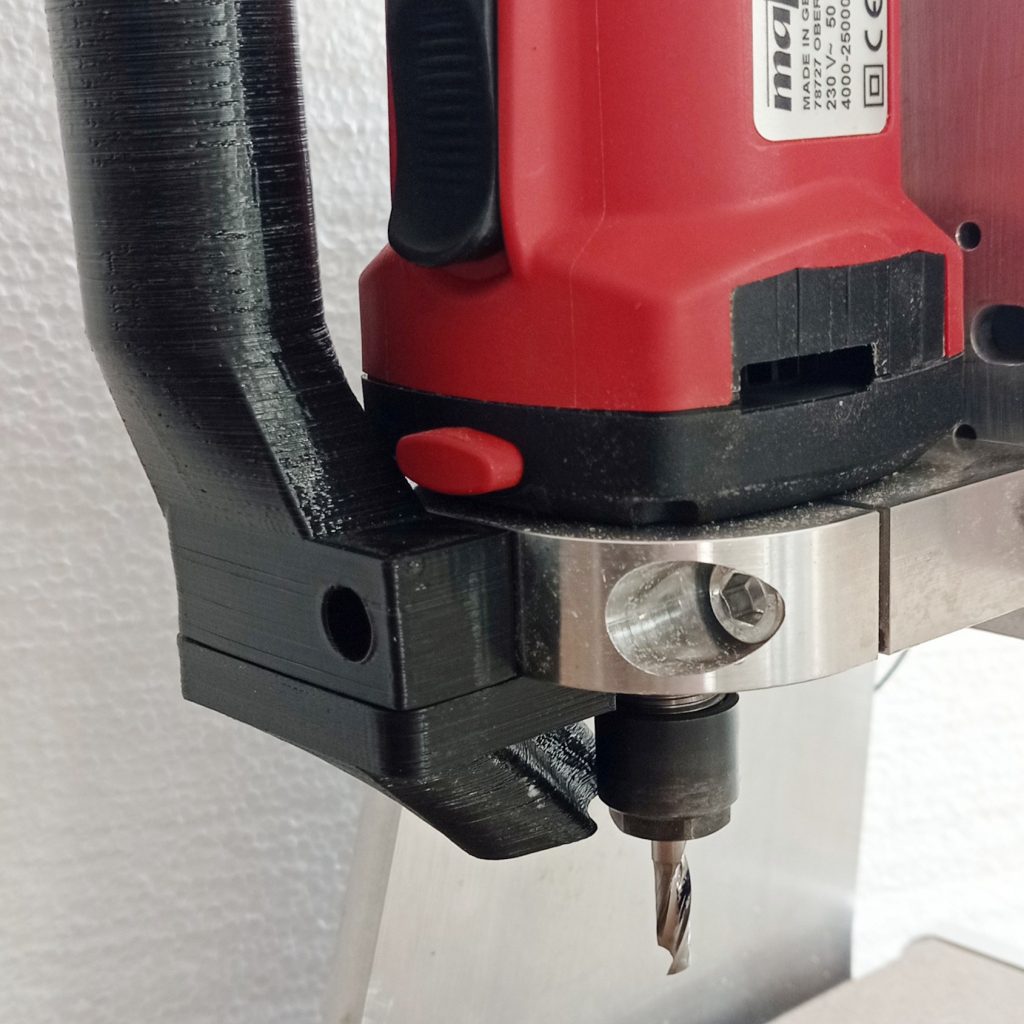

The extraction system for the Mafell FM 1000 milling spindle is designed for the extraction of wood dust and fine chips. The milling spindle is designed for a 60mm suction hose.

Thanks to Elias for developing the dust removal system.

Required components:

  • 3D printed parts set
  • 4x M4x16 Allen screw
  • 4x nut M4
  • 2x M5x12 Allen screw
    • Download 3D files

    Dust extraction

    The extraction system for the Mafell FM1000 was developed to extract the milling dust. Chips are not normally extracted. The suction system is designed for the standard vacuum cleaner hose with an inner diameter of 32mm.

    Many thanks to Elias for developing the suction system.

    Required components:

  • 3D printed parts set
  • 4x M5x12 Allen screw
    Download 3D files

    • Dust extraction

    The extraction system for the 300W milling spindle was developed to extract the milling dust. Chips are not normally extracted. The suction is designed for the standard vacuum cleaner hose with an inner diameter of 32mm.

    Required components:

  • 3D printed parts set
  • 4x M5x12 Allen screw
    Download 3D files
