MINImill KIT PRO

Precise milling in Aluminium, Wood and Plastics

Precise milling processes require a sturdy milling machine. We built the MINImill KIT PRO with 20mm linear rails and ball screws to guarantee excellent milling results and a long service life.

Furthermore our directly driven balls ball screws with an additional load bearing enable the machine to mill precise parts in aluminium.

SIMPLE PCB MILLING

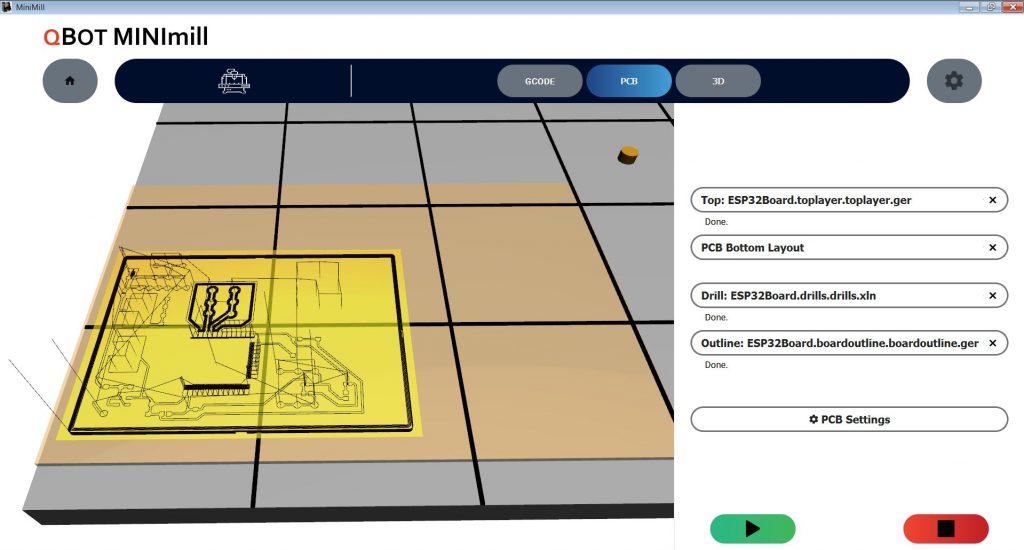

Easily mill single or double sided PCBs directly from your Gerber files. Our software automatically calculates the cutting and drilling files for your PCBs. Open your Gerber files and directly start milling.

The MINImill KIT2 offers an automated probing system to perfectly engrave your PCBs. Get industrial grade PCB milling results on your MINImill KIT2 and speed up your PCB development.

Our software automatically chooses the cutting and drilling tools, you just have to manually change the tools during milling. For easiest startup we recommend our PCB holder – however using our tutorials in the download section you can even mill your own.

Excellent performance in Aluminium

The MINImill KIT PRO with the optional 1000W Mafell milling spindle offers exceptional performance in milling aluminum. The milling performance can be compared with larger industrial high speed milling machines.

We use the MINImill KIT PRO XL in our series production so that we can continuously adapt and improve our milling machines for optimum performance in your workshop.

Two sizes for prototype and series production

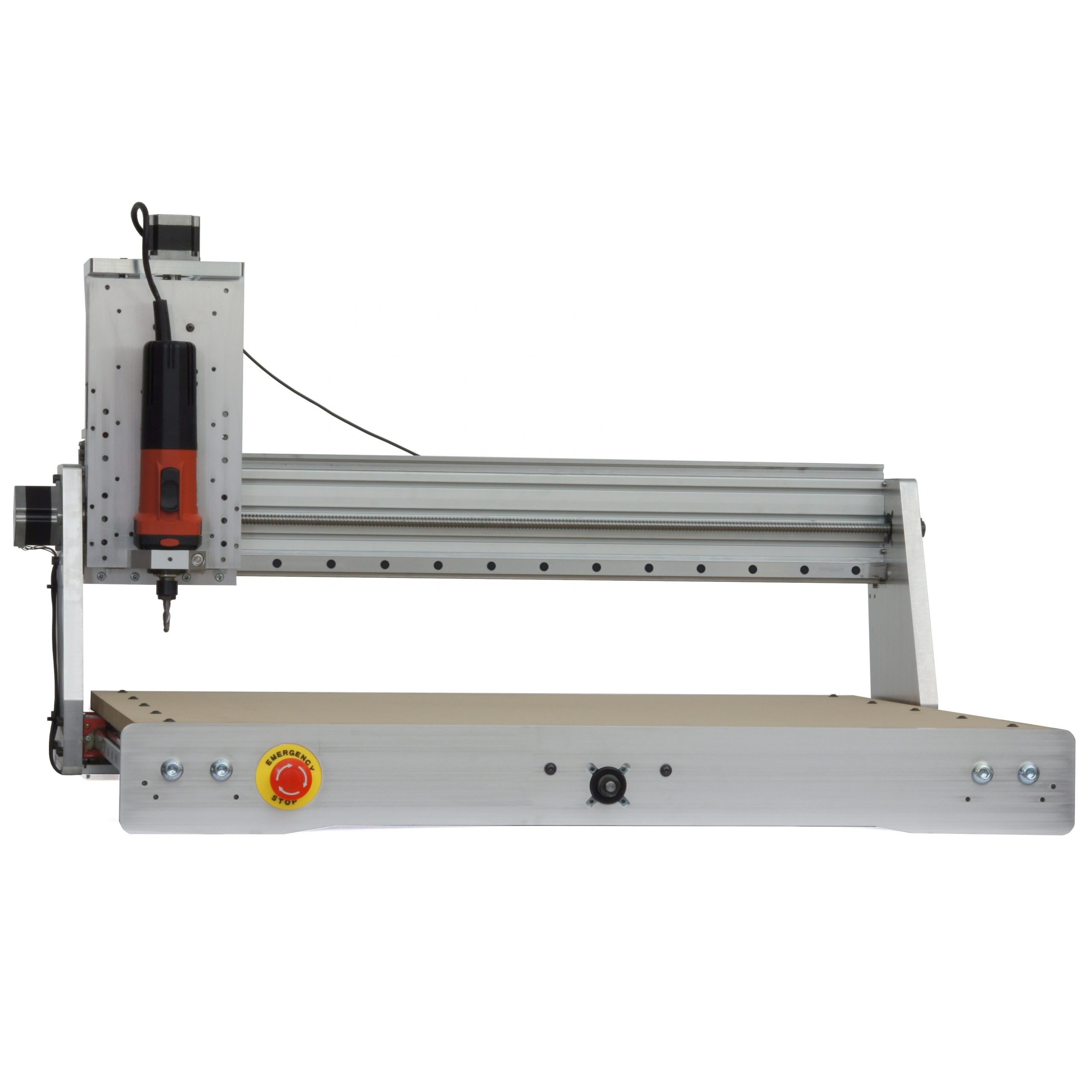

We offer the MINImill KIT PRO in two sizes enabling you to pick the perfect milling machine for your application. The MINImill KIT PRO best suits the ambitious maker and small companies for prototype production and model making. We recommend the MINImill KIT PRO XL for series production or big maker projects.

MINImill KIT PRO: 510x300x100 mm machine travel

MINImill KIT PRO XL: 740x510x100 mm machine travel

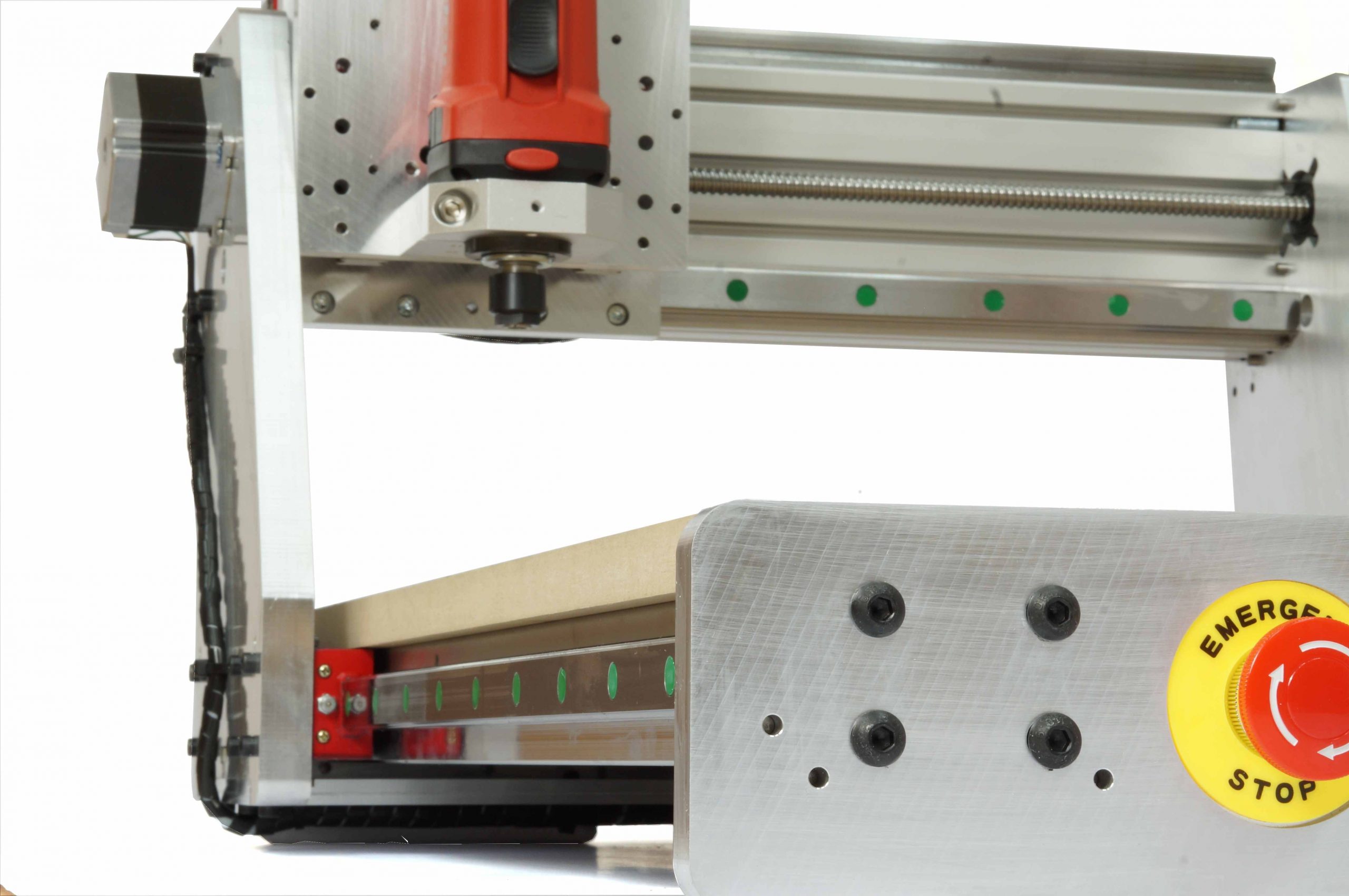

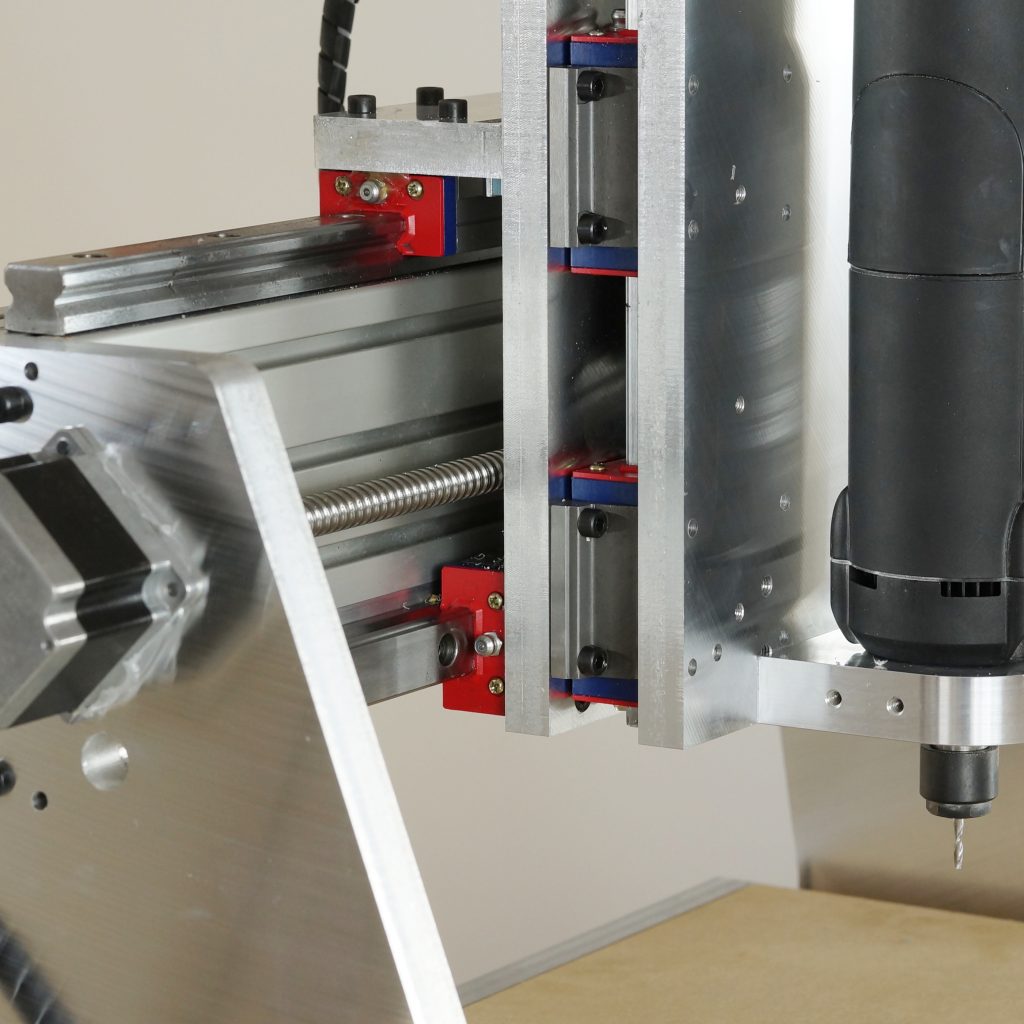

BALL SCREWS AND LINEAR GUIDES OFFER OUTSTANDING STABILITY

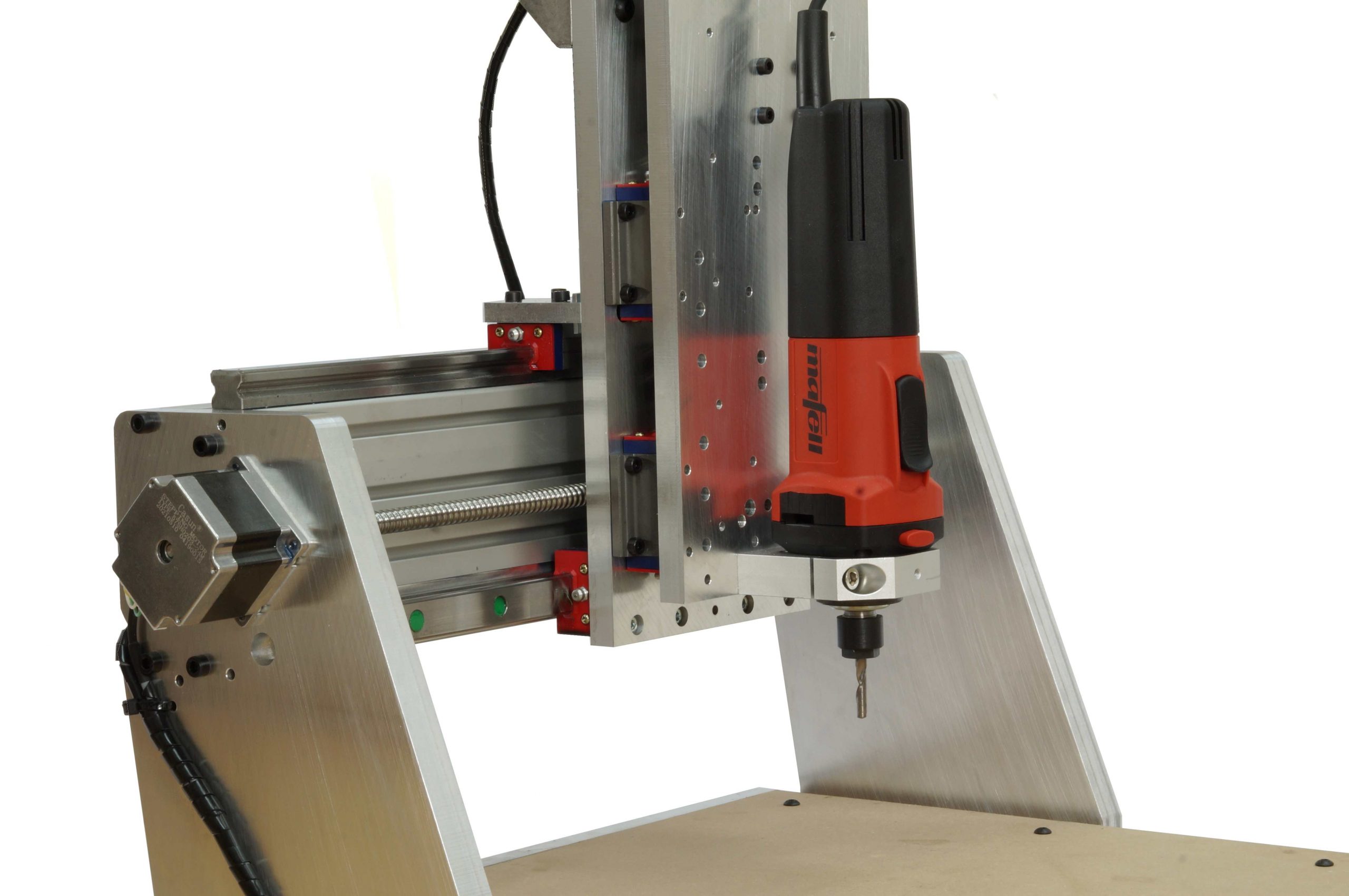

A sturdy machine frame is the basis for exceptional milling performance. We have designed the MINImill KIT PRO to meet highest stiffness criteria in its class. All aluminum parts are made out of up to 20mm thick aluminum sheets enabling the machine to finish work pieces with professional surface quality.

The deformation of all components is well below 1/100 of a millimeter during the milling process (at cutting forces below 1kg) – putting the MINImill KIT PRO in the same class as considerably larger portal milling machines.

STURDY AND PRESICE ALUMINIUM PARTS

Our precisely milled parts with engineered fits enable a simple and precise assembly of the MINImill KIT PRO.

Most parts of the MINImill KIT PRO are made of standardized components resulting in a high quality build and a long supply of spare parts. We took exceptional care in the design to enable a robust and long life design. Of course we have all parts for replacement in stock.

EASY USABILITY

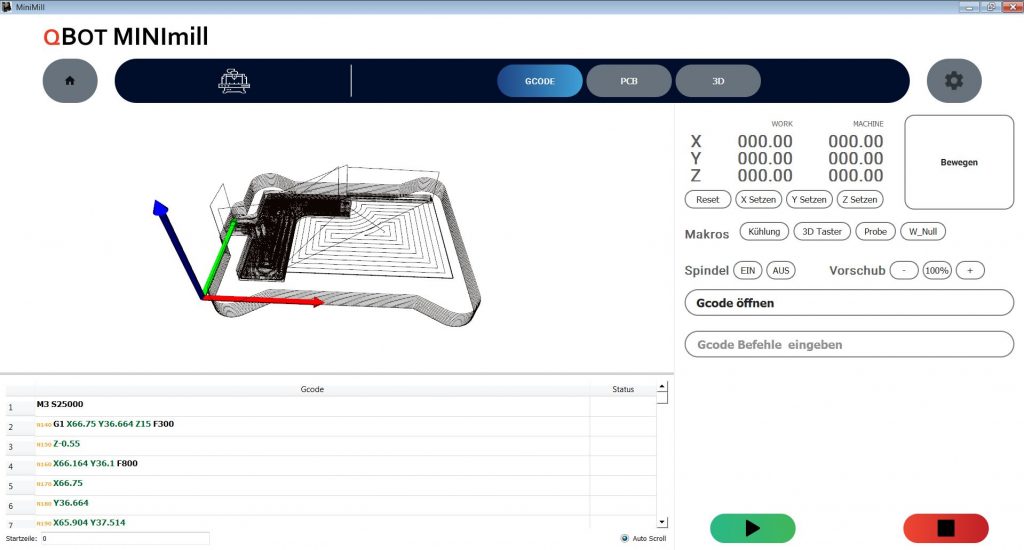

The MINImill KIT PRO is connected via USB with your PC. Our easy to use software enables you to easily mill DXF, STL and Gerber files.

Our software offers advanced manufacturing capabilities in the GCODE module. Tool length sensors, 3d touch probes, macros and JavaScript based tasks can be easily implemented enabling you to adapt our milling machine to your task.

You can also open GODE files from all industrial CAD CAM programs. Optionally you also can use the MINImill KIT PRO with the other GRBL controllers from our download section

LEarn more about our software

CLEANING AND ASSEMBLY

Assembling the MINImill KIT PRO is easy due to the high amount of premade parts. You only need the proper Allen keys for assembly which are already included. The electronics board and the cables are already fully pre made so that you only have to connect the plugs.

After manufacturing you can easily clean the milling machine.

Assembly instructions MINImill KIT PRO

TECHNICAL DATA

WORK AREA: 510x300x100 mm; 740x510x100 mm

AXIAL PLAY: < 0.03mm

WARRANTY: 2 years (up to 300h)

POWER SUPPLY: 100-240 V AC 50/60Hz, 160W + Mafell FM1000 milling spindle
